Industrial Welding Robot
Request a Quote
CTR008-HJ1450
Floor-mounted industrial welding robot for high-speed 24/7 production lines.
8 kg
Payload (kg)
±0.08 mm
Repeatability
1465
Reach / Span
What is the CTR008-HJ1450?

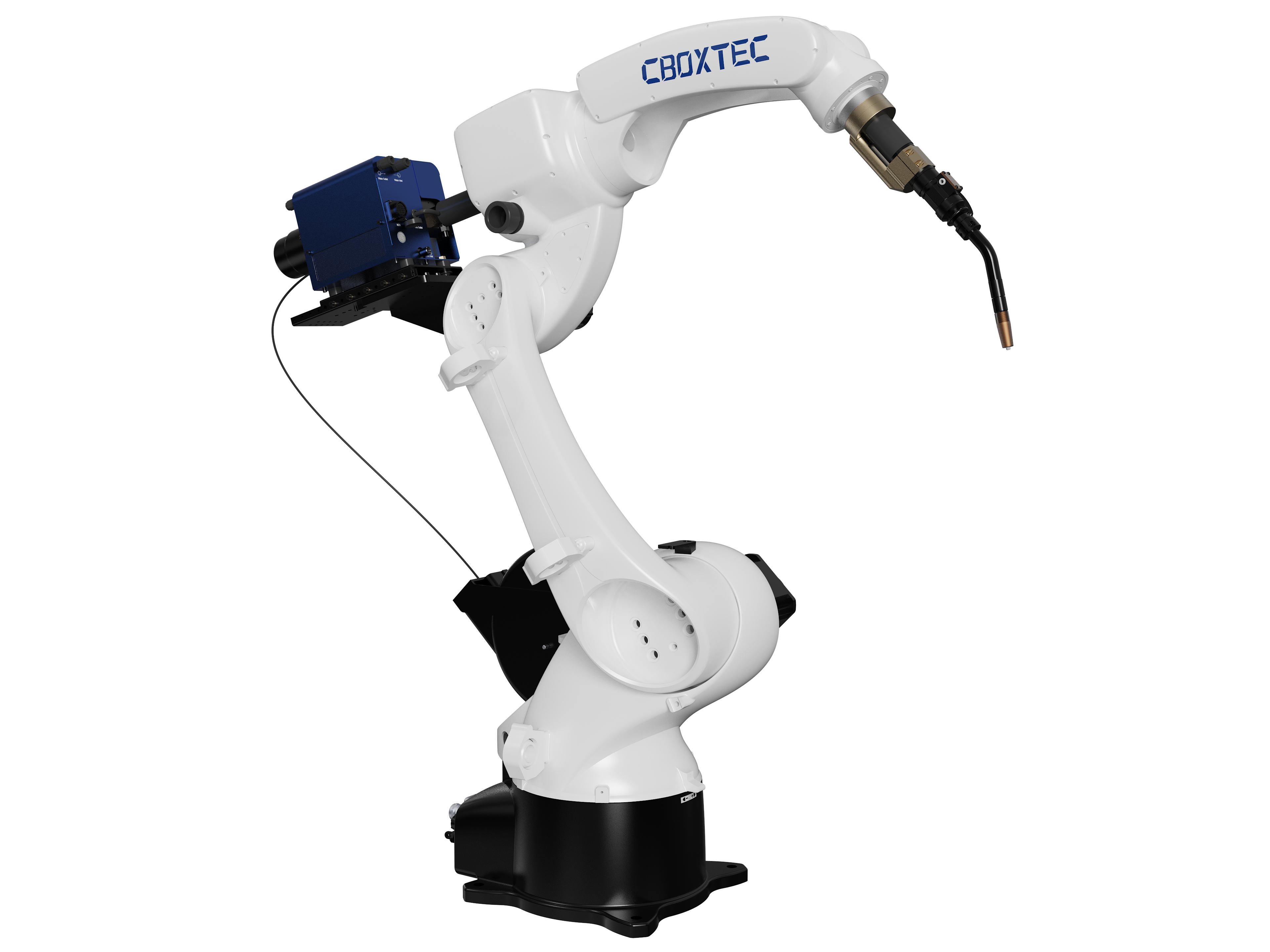

The CTR008-HJ1450 is an industrial 6-axis welding robot with an 8 kg payload and 1465 mm reach. It is floor-mounted and designed for high-speed, continuous production welding with cycle times shorter than typical collaborative arms.
Key Features
- Industrial Speed and Rigidity: 190 kg base and rigid construction support faster acceleration and shorter cycle times than collaborative arms
- Floor-Mounted Stability: fixed floor mounting provides repeatability and damping for high-deposition welding
- Wide Joint Range: J6 rotates ±360° and J1 rotates ±170°, supporting complex torch orientations
- 24/7 Production Rated: designed for continuous operation in automotive and heavy fabrication lines
Typical Applications
This system is widely used in the following industries and scenarios:
- Automotive Subassembly Welding: repeated high-volume MIG/MAG welding of chassis and exhaust components
- Resistance Spot Welding: spot welding of sheet metal assemblies in stamping and fixture lines
- Heavy Fabrication Lines: long-run production of construction and agricultural equipment parts
Technical Parameters
Payload8 kg
Reach / Span1465 mm
Repeatability±0.08 mm
Weight190 kg
Rated Power4550 W
Number of Axes6
Protection DegreeIP65
Control BusEtherCAT / 1 kHz
Working Temperature0 ~ 45°C
Humidity20%~80%RH, Non-condensing
Installation ModeFloor mounted only
Product Gallery
Frequently Asked Questions
CTC-HJ is a collaborative arm series for hand-guide teaching and flexible cells. CTR-HJ is an industrial floor-mounted robot for high-speed, continuous production lines.
Payload is 8 kg and reach is 1465 mm.
No, it is an industrial robot designed for fenced workcells. It does not have hand-guide teaching.
Power consumption is 4550 W. A 3-phase industrial supply is typically required.
